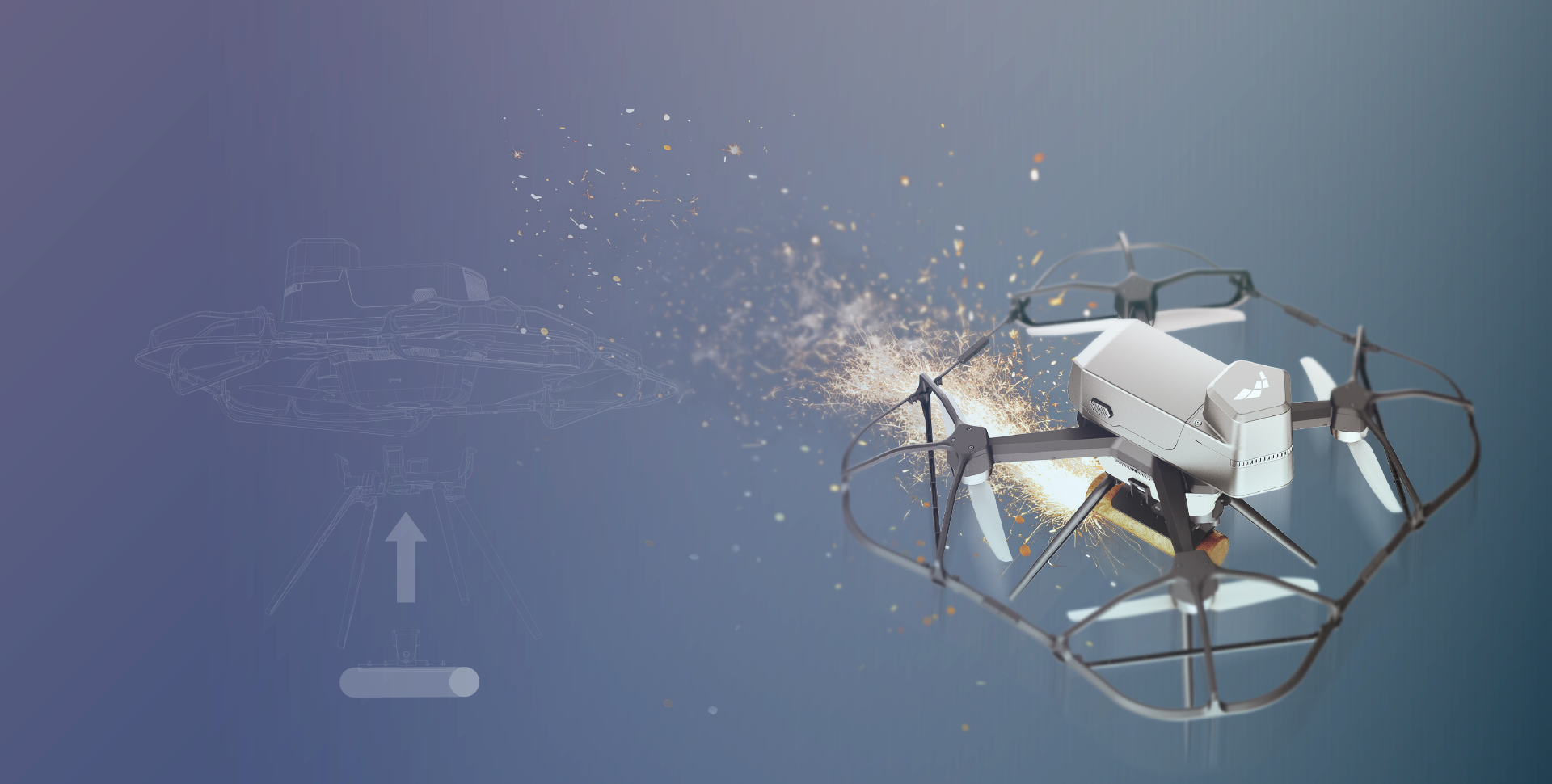

More Creative Performance

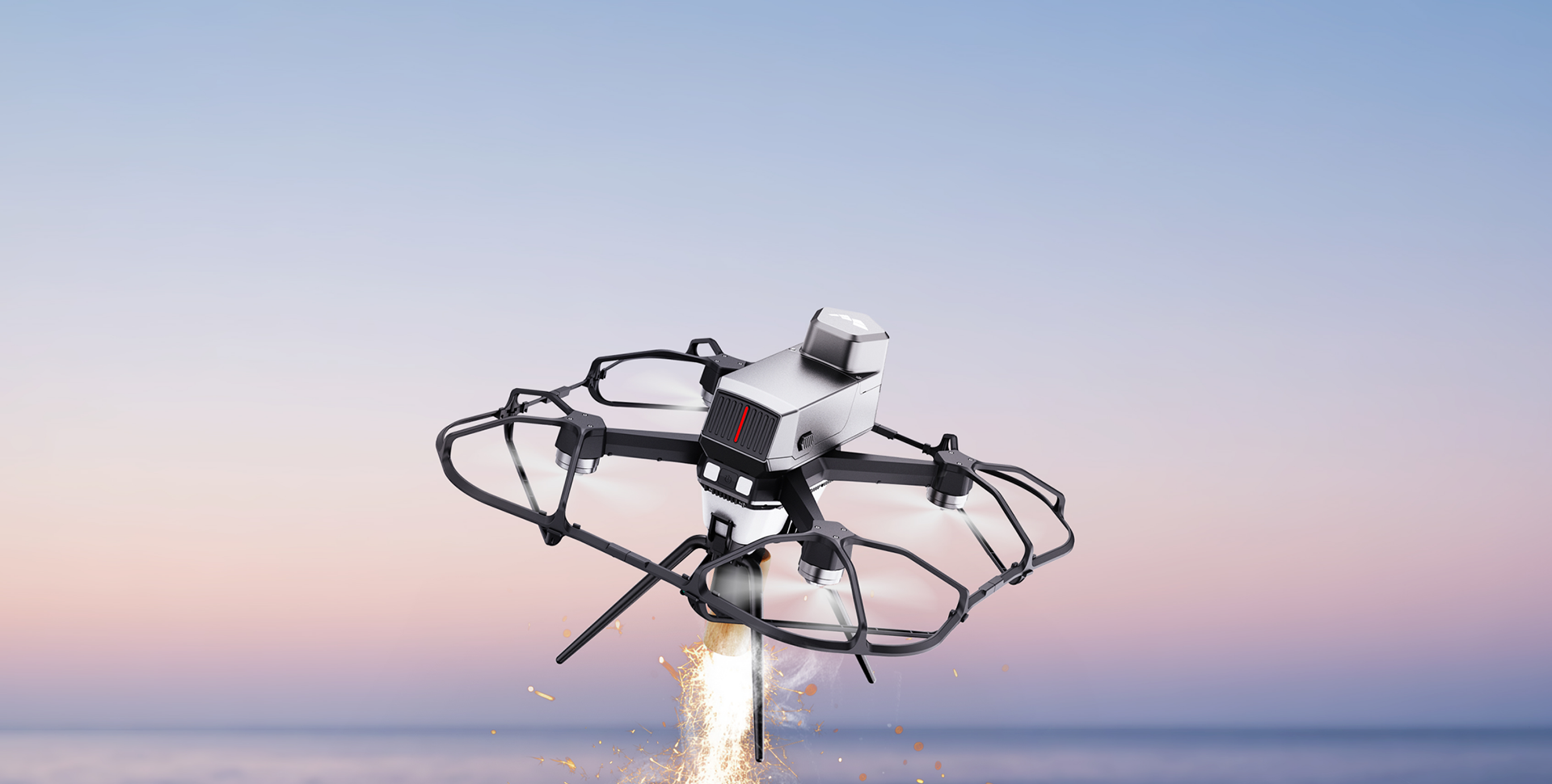

Light & Firework Compatible
Dual-angle Launch
More Creative Performance

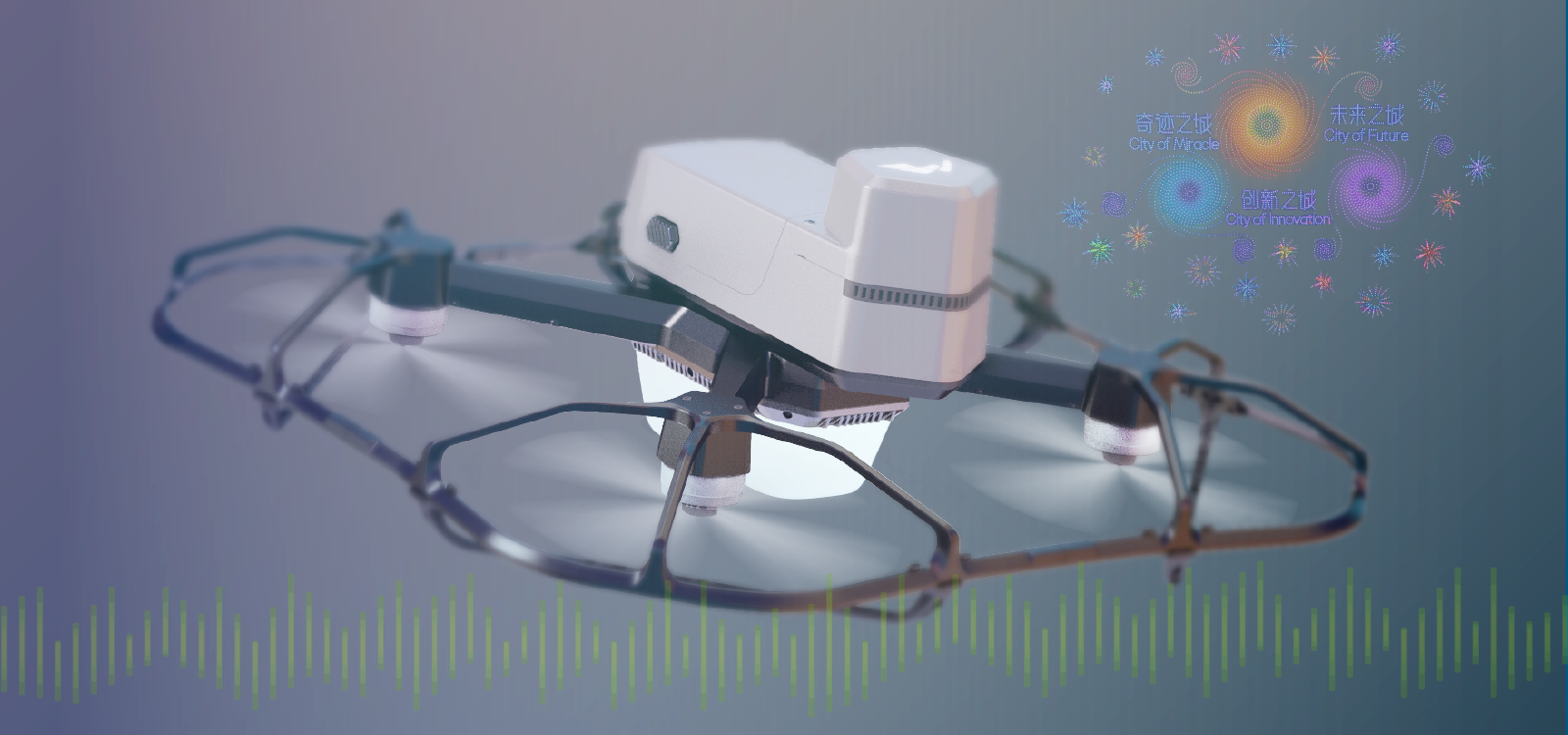

High-performance System
Single DGCS for Multi Fleets,Supports Different Takeoff/Landing Locations
Multi DGCSs for One Script
Smooth Operations with 10k+ Drones
Multi Drone Models Compatible
Timecode Sync
High-performance System

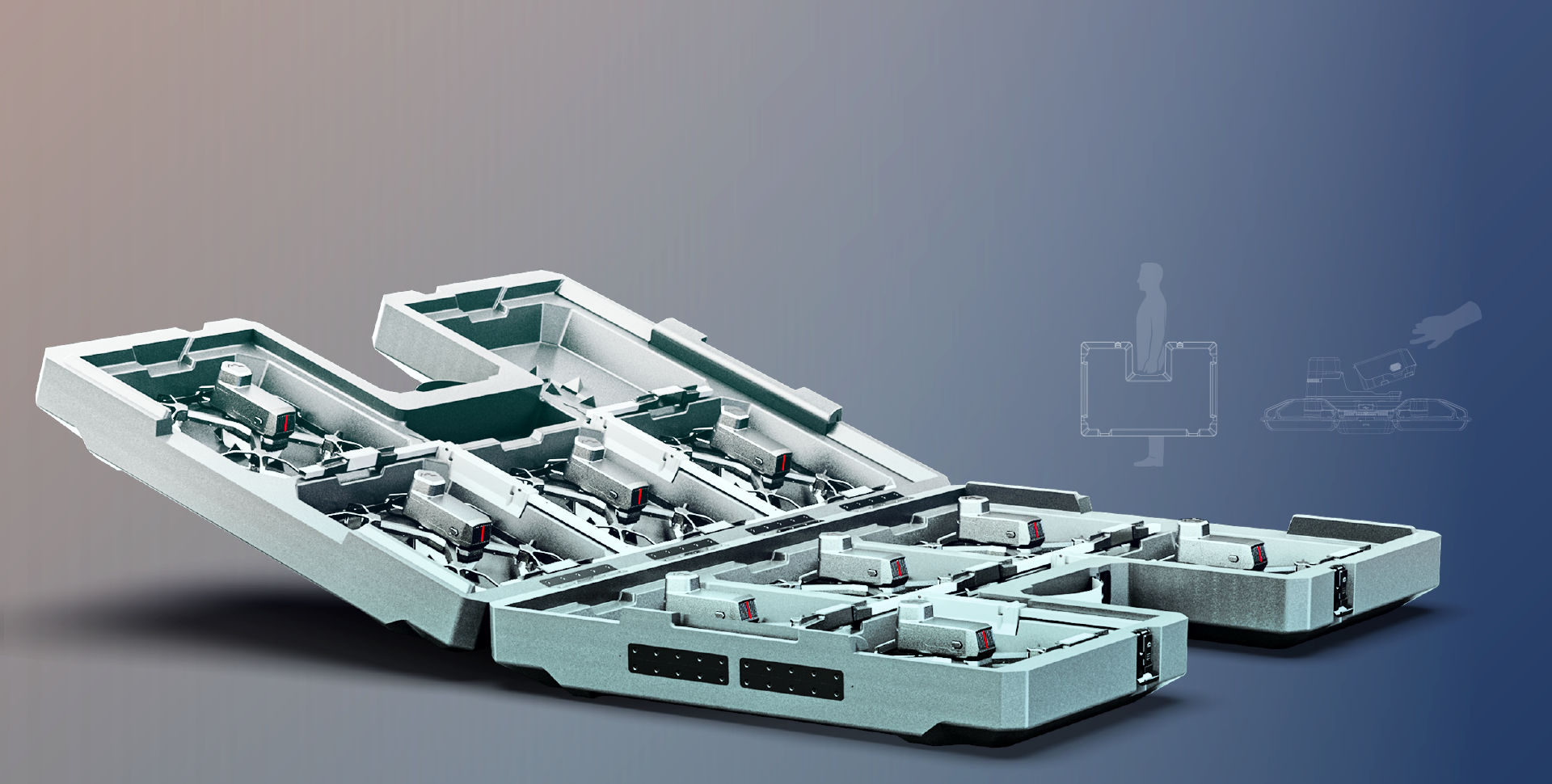

User Friendly Operations
User Friendly Operations

Dock-based Takeoff & Landing
Modular Component Design, Easier Maintenance
Remote Drone Power-on
Simpler Workflow, Lower Labor Costs

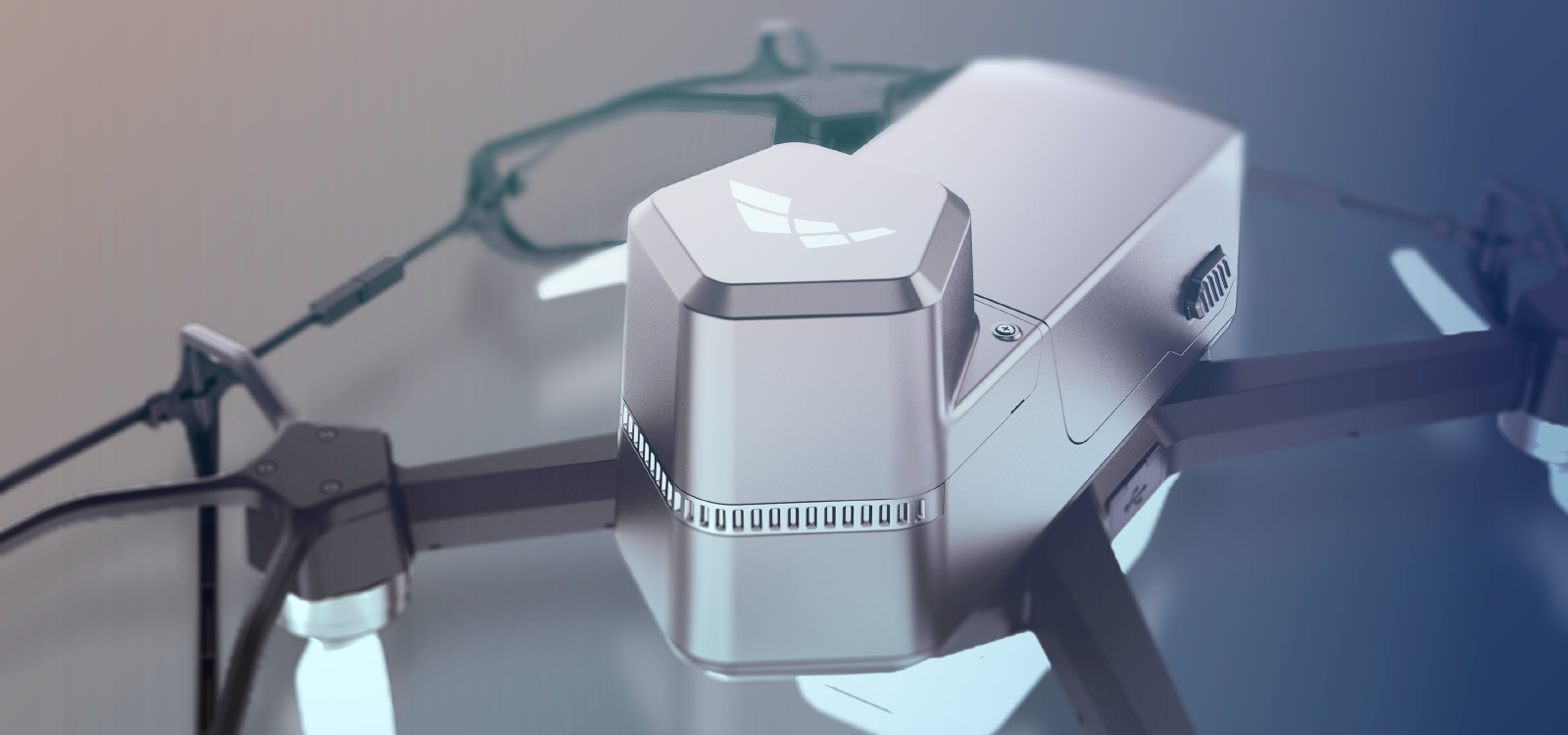

Global Ecosystem Resource Sharing
Global Equipment |Script Design
Advertising Landmarks |Fly-Service
Global Ecosystem Resource Sharing
Specifications
  • Dimension
    320mm* 320mm*115 mm
  • Weight (no payload)
    530g (596g with 5000 mAh Long-Endurance Version)
  • Max Wind Resistance
    8m/s
  • Fireworks Mounting
    Yes (requires separate purchase of accessories)
  • Positioning
    RTK (GPS / GLONASS / BDS Supported)
  • Positioning Accuracy
    Horizontal 8 mm, Vertical 15 mm
  • Battery Installation Method
    Manual press-type battery replacement
  • Charging Method
    Platform charger (30 pcs each)
  • Power-on Method
    Remote Power-on
  • Docking Case Capacity
    10 Units per case
  • Single Hovering Time(Endurance without payload)
    ≤32 min (≤42 min with 5000 mAh Long-Endurance Version)
  • Max Performance Time (No payload)
    15 min (22 min with 5000 mAh Long-Endurance Version)
  • Suggested Show Duration (80g payload)
    8–12 min
  • Minimum Flight Spacing
    1.4m(down to 1.2m in extreme conditions)
  • Maximum Performance Lighting Power
    24W
  • Maximum Performance Speed
    10m/s
  • Site Demands
    250㎡/1000 units
  • Strobe Light
    Support(MAX light power 40W)
  • Communication Range
    Radio Controller: 1 km / Wi-Fi: 500 m
  • Operating Temperature
    -15℃~45℃(Preheating Required Below 0°C)
  • Others
    Built-in Remote ID, compliant with Civil Unmanned Aircraft System Safety Requirements
