Automated Drone Swarm Performance System V4
DAMODA V4

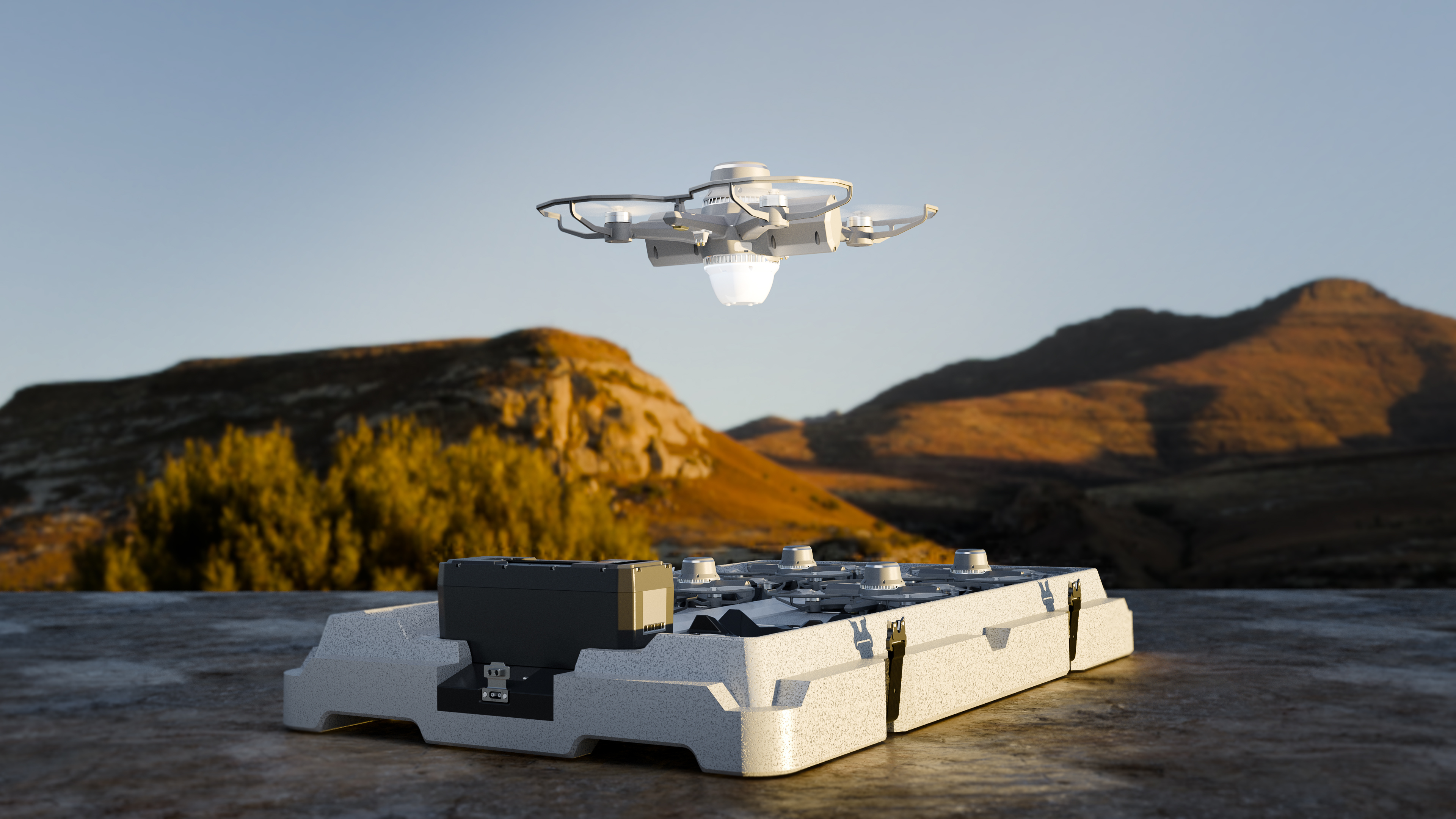

Pioneered Dock-based automatic fast-charging commercial application technology
Endless Flight and Multi-shows

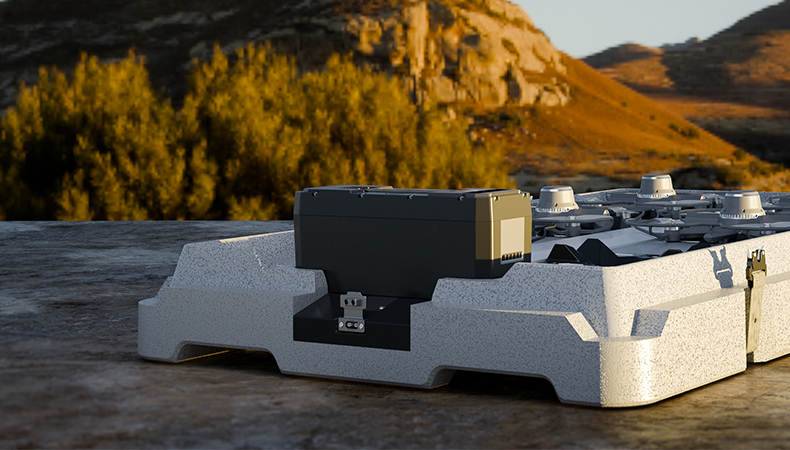

Automatic Charging
High Safety & Reliability Close to 99.999%
Complex Scenario Operation Advantages
Fully Automated Flight
Endless Flight and Multi-shows

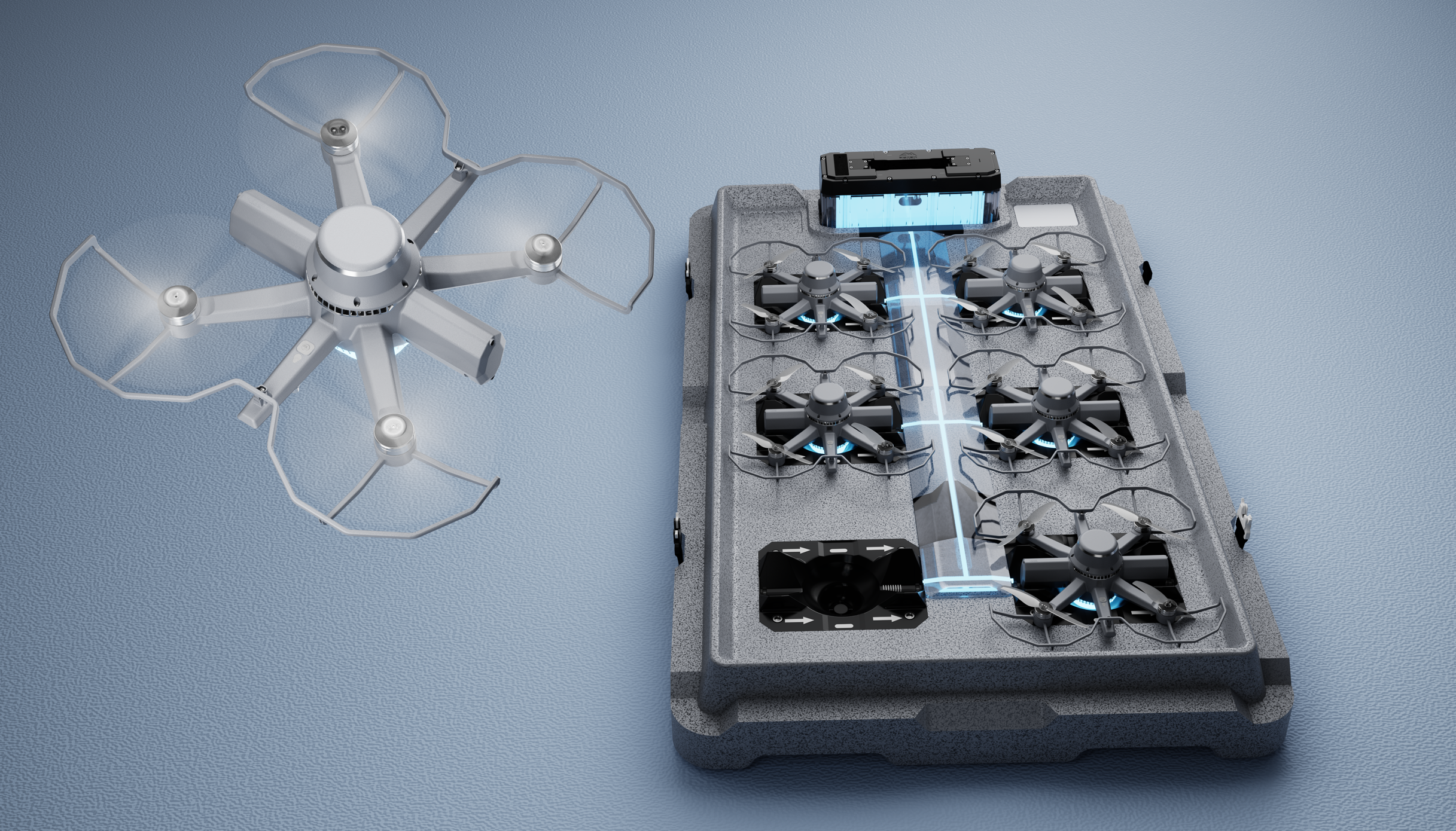

Automatic Charging

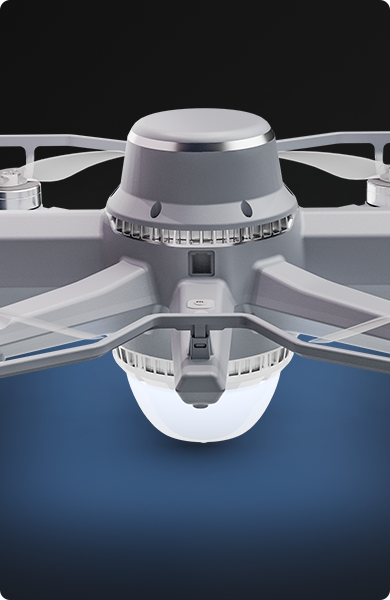

Outstanding Aerial Visual Performance
Deliver outstanding aerial visual performance, enabling large-scale formations and vivid sky storytelling
Millimeter Accuracy
Full-color RGBW
Upgraded Filling Algorithm
Real-time Compensation

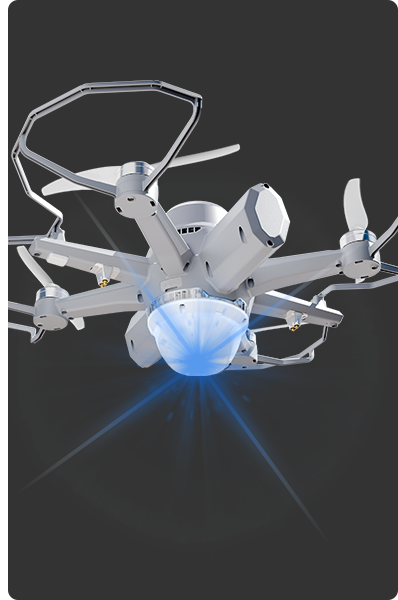

Multicolor Strobe Effects

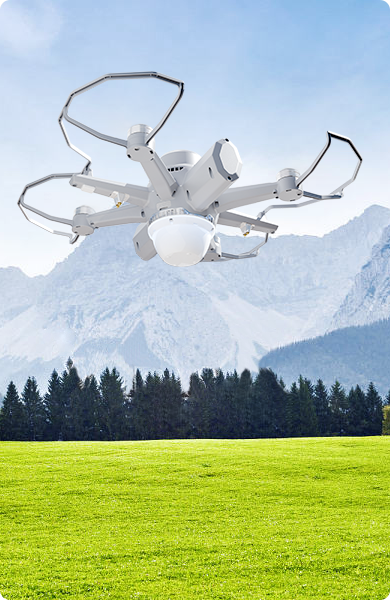

Adaptive Deployment for Complex Environments
Ensuring stable performance even in challenging site conditions
One-Click Termination
(light rain standard per GB/T 28592-2012, within warranty period)

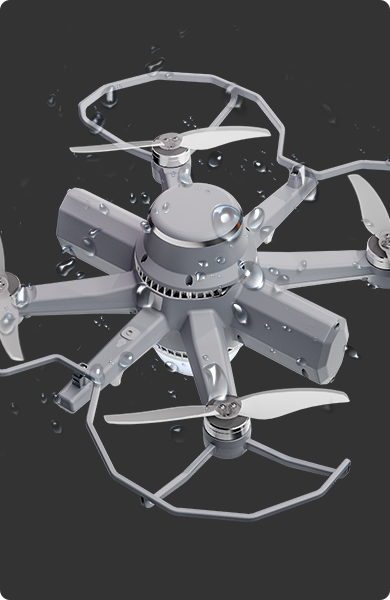

Upgraded to IP54, no fear of light rain emergencies
(Preheating required below 0℃)

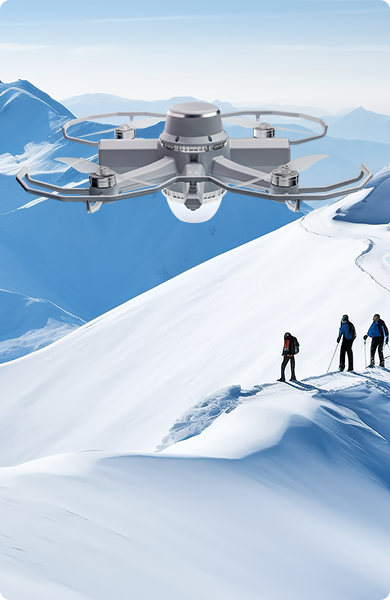

-20℃ to 50℃ Extreme Climate Adaptability
Support for 11 Complex Scenarios

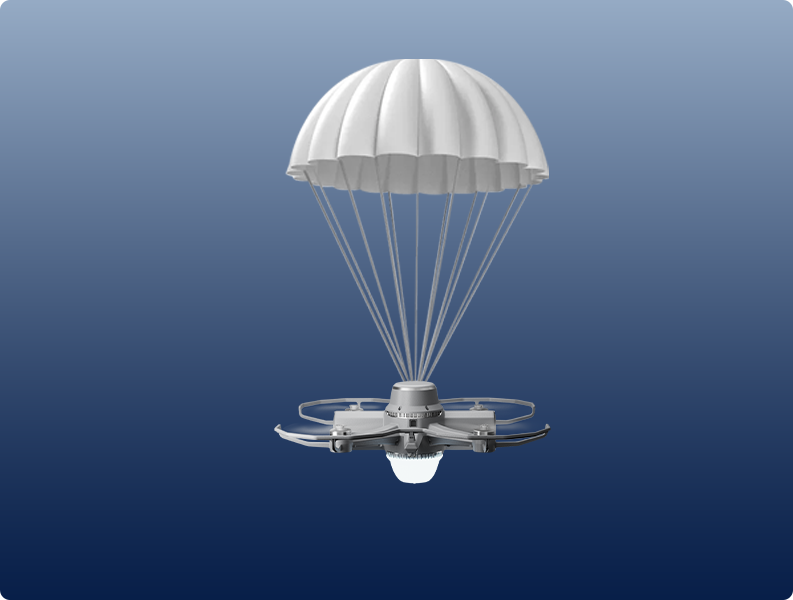

Parachute Protection
Safety Advantages
Flight Reliability Improved to Nearly 99.999%

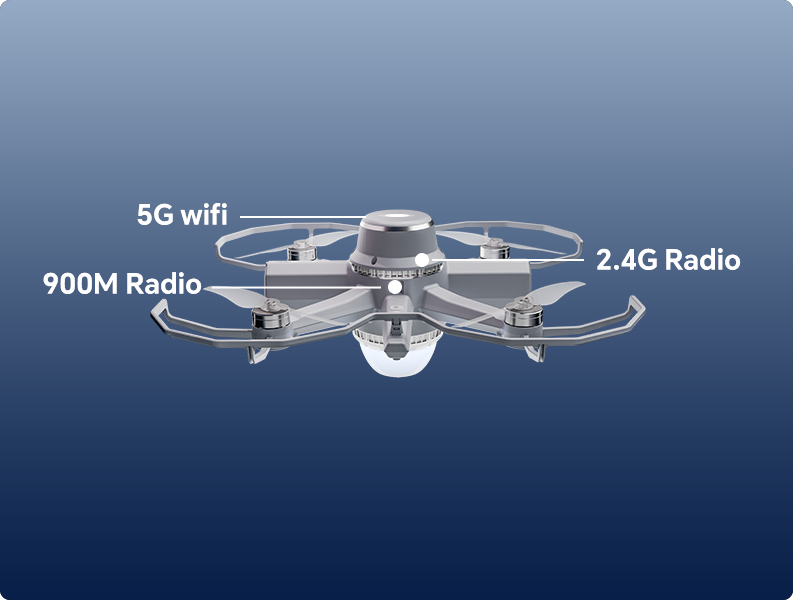

Multi-layer Redundancy through 5G WiFi, 2.4G radio differential signals
Efficiency Advantages
Script Production Efficiency by 3 times
Script production efficiency is increased by three times, significantly reducing workload and production time to meet the growing demand for large-scale performances.
Algorithm Upgraded
Significant algorithm upgrades deliver a major leap in performance quality, design efficiency, and execution efficiency, reducing labor and operational costs while enabling flexible, efficient, and low-cost responses to complex on-site requirements — easily supporting 10,000-drone-scale performances.

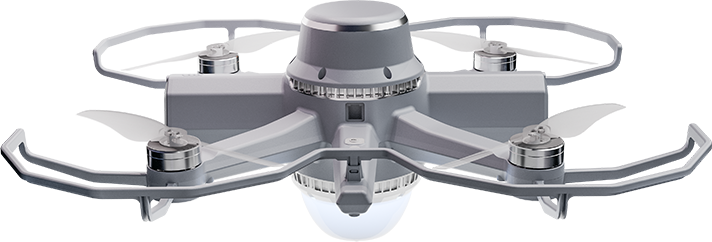

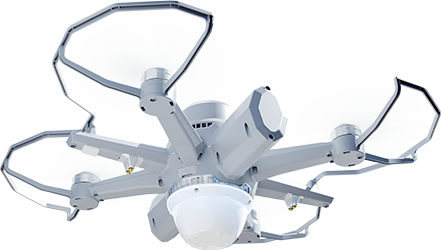

V4 Parameter
-
Dimension308mm*308mm*124mm
-
Wheelbase230mm
-
Weight565g
-
Max Wind Resistance Velocity8m/s
-
Suggested Show TimeWithin 15 min
-
Location SolutionUpgraded RTK (GPS / GLONASS / BDS Supported)
-
Positioning AccuracyHorizontal 8 mm, Vertical 15 mm(Under Normal RTK Operation)
-
Battery Installation MethodBuilt-in
-
Charging MethodAuto Charged after landing
-
Power-on MethodRemote power-on by batches
-
Capacity of Docking Case24 pcs
-
Maximum Cruising Velocity10m/s(swarm perform speed)
-
Power of Light24W
-
Site Demands250 m² / 1,000 Drones
-
Strobe LightSupport
-
Communication Distance2km
-
Operating Temperature Range-20°C to 50°C(Preheating Required Below 0°C)
-
Waterproof LevelIP54
-
Security AssuranceAuto Parachute Protection
-
Parachute Opening Altitude30m-60m
-
Shows Capability of a Single-Power Station3 Shows
-
Interval for Re-flight40min-60min(Automatic Charging, No Need Battery Replacement)
