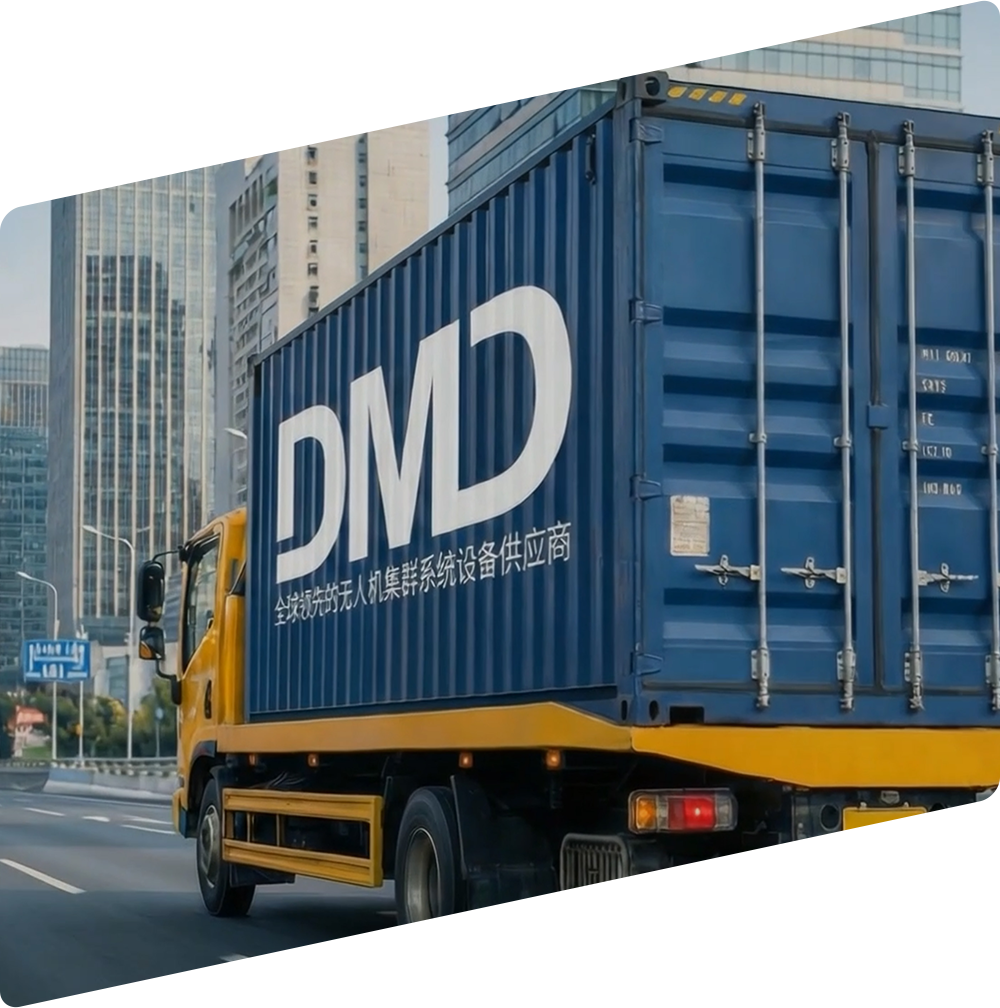

Convenient Transportation, All-in-One Delivery
Vehicle-mounted containerized design enables integrated equipment transport and deployment.
Vehicle-mounted Drone Show System Platform
Pioneering a New Era of Industry Efficiency with Full-Process
Full-Process Intelligent Control
For the Entire Drone Show Workflow: Transportation - Deployment
Rapid Transport
Convenient Transportation, All-in-One Delivery
Rapid Retrieval
60s Automatic Retrieval, Reducing Venue Recovery Time
Integrated Charging
Built-in Automatic Charging System Synchronized Power Supply for the Entire Vehicle

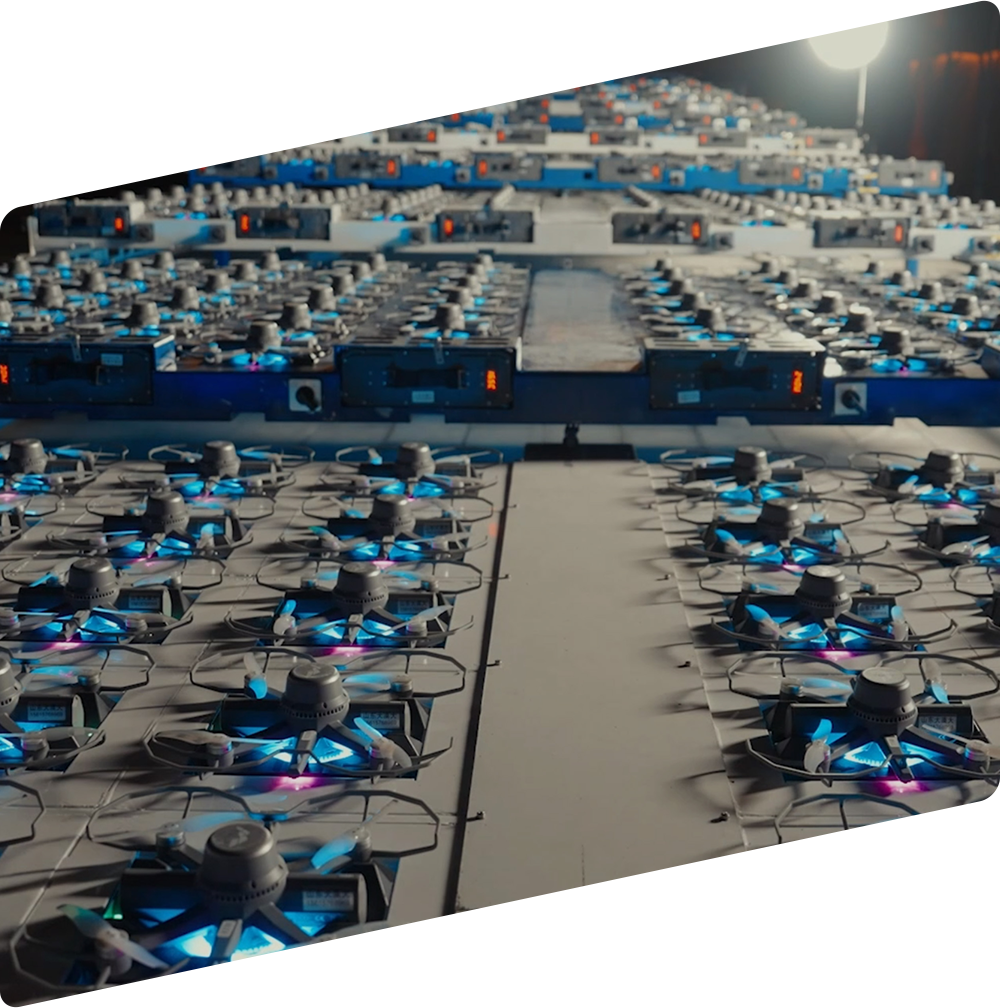

Rapid Deployment
60s Automated Deployment, Redefining Industry Efficiency
60-Second Automated Deployment
Redefining Industry Efficiency
Redefining Industry Efficiency
Setup within seconds, replacing the traditional hours-long deployment cycle.
Significantly improving on-site deployment efficiency and operational reliability.
Significantly improving on-site deployment efficiency and operational reliability.

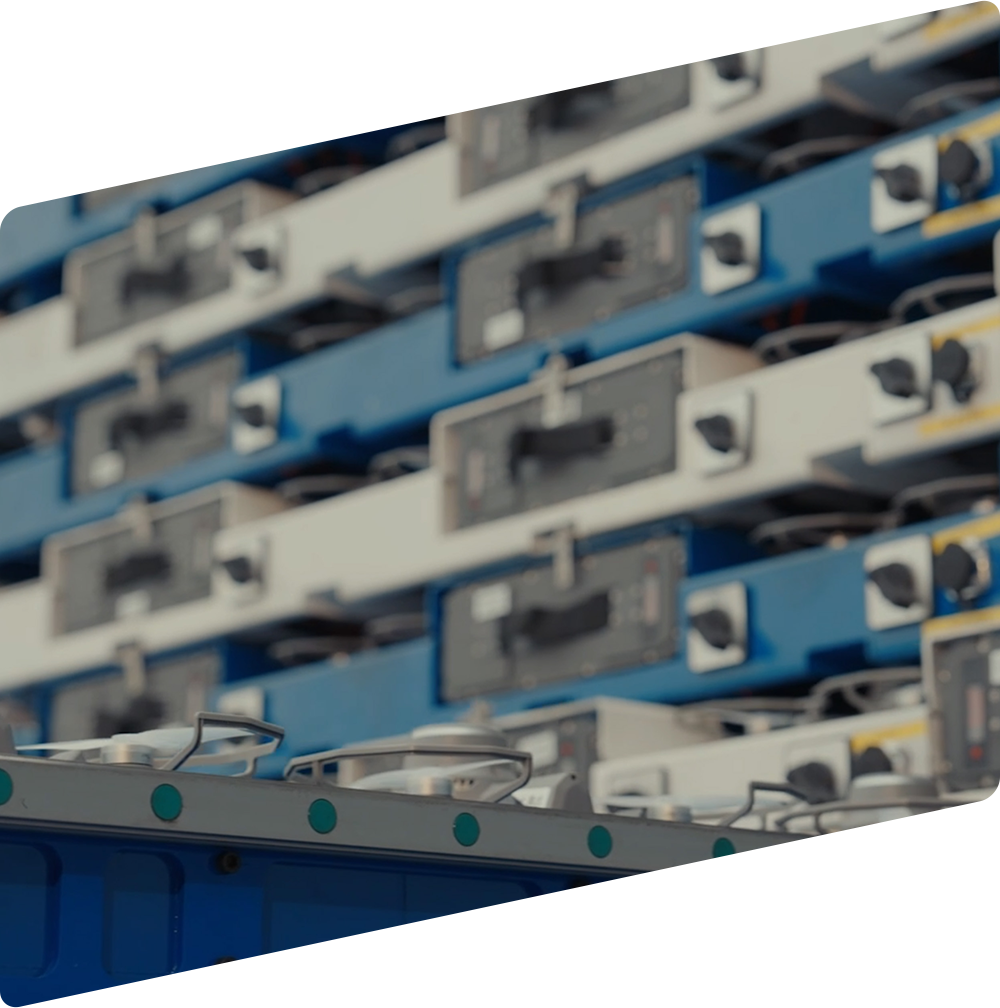

Built-in Automatic Charging System,
Synchronized Power Supply for the Entire Vehicle
Synchronized Power Supply for the Entire Vehicle
Enables integrated swarm power management and synchronized charging, supports multipleperformances,
and reduces manual battery replacement.
and reduces manual battery replacement.

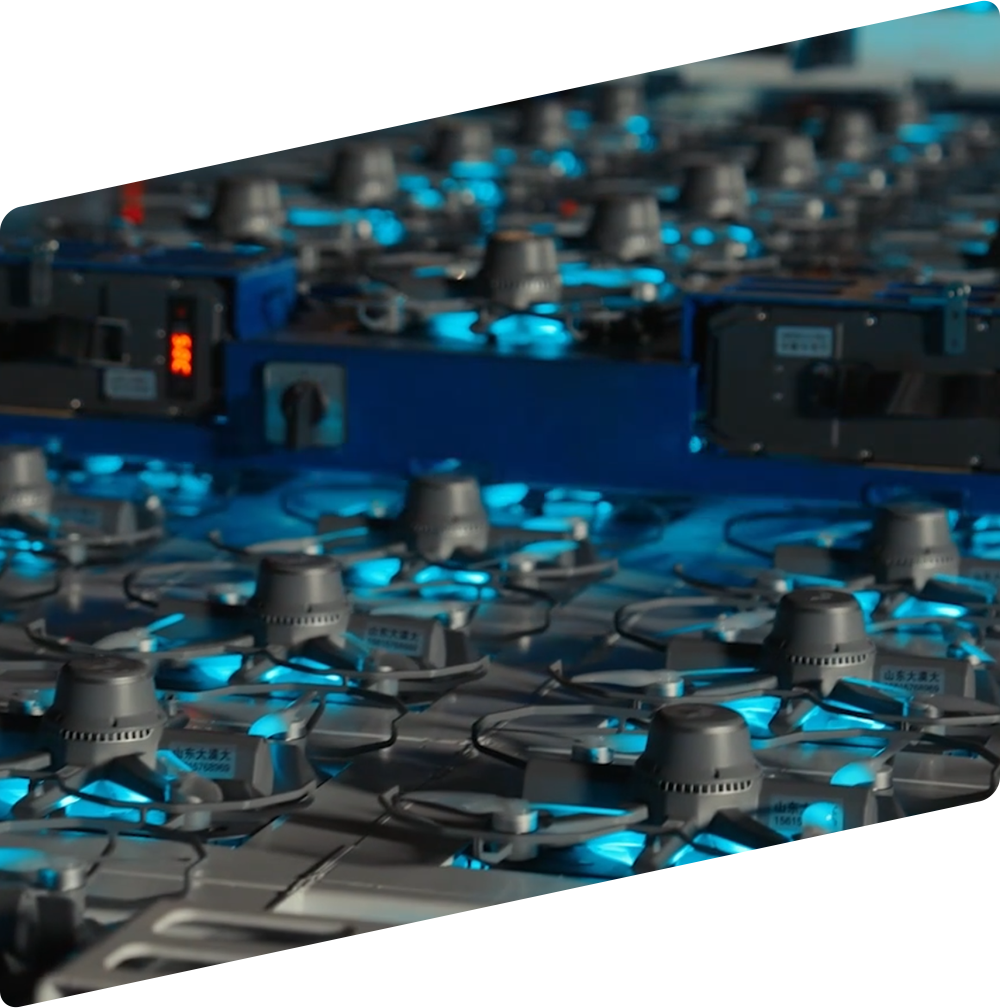

60-Second Automatic Retrieval,
Reducing Venue Recovery Time
Reducing Venue Recovery Time
Improves venue turnover efficiency and ensures continuous project execution capability
Specifications
| Drone Capacity | 540 drones (530 perform, 10 backup) |
| Storage Layers | 10 |
| Deployment Method | Hydraulic lifting legs with automatic leveling |
| Lifting Height | 0m – 1.3 m |
| Stabilizer Width | 3m |
| Stabilizer Width | 4.8 m (L) × 2.4 m (W) × 2.2 m (H) |
| Total Weight | 6 tons |
| Door Configuration | Side doors + Front & Rear doors |
| Rail Deployment Length | 22m |
| Working Area | 25 m × 4.8 m |
| Control Method | Automated / Remote Control |
| Deployment Time | 60s |
| Power Supply Type | Mains Electricity and Power Bank |
| Power Supply | AC 380 V / 30 kW (single layer AC 220V / 30kW) |
| Protection Rating | IP54 |
| Operating Temperature | –20°C to +50°C(Preheating Required Below 0°C) |
| Top Panel Load Capacity | 200 kg/m² |
| Rail Deployment Load Capacity | 100 kg/layer |
| Ground Bearing Requirement | >≥1.5 t/m² |
| Main Structure Material | Aluminum Alloy |
| Rail Material | 45# Steel |
| Hydraulic Load Capacity | ≥10 t |
| Emergency Stop Function | Support |
